Chameleon LED Signal Sticks
- Two or three interwoven LED colors in each light
- Directional stick uses 192 amber LEDs
- Warning signal uses 224 LEDs in your choice of blue, green, red or white LEDs
- Black, anodized aluminium housing with (T-slot) sliding bolt mounting channel on back and bottom.
- Clear Lexan lens cover protects from dust and debris.
- Waterproof model available. (additional charge)
- Signal Stick: 1 15/16"H x 41"W x 1 15/16"D Deluxe Controller: 1 5/16"H x 6"W x 5 11/16"D

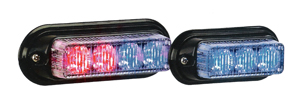

Galaxy LED Lights
- Three or four 1-watt LEDs in each surface-mount lighthead
- Diffusing lens provides wide horizontal light dispersion
- Multiple unit synchronization
- User-selectable flash patterns
- Galaxy III Lights have a self-contained flasher with 12 flash patterns and a solid array of amber, blue, red or white LEDs
- Purple Galaxy III and IV Lights are also available (White LEDs with a purple ribbed lens cover)
- Electronics are fully sealed with epoxy resin for protection from vibration, impact and moisture
- Compact, die-cast aluminium housing
- Galaxy III: 1 3/8"H x 3 7/8"L x 1 5/8"D / 4.7oz // 12V / 0.35 amps max
Galaxy IV: 1 3/8"H x 4 3/4"L x 1 5/8"D / 5.8oz // 12V / 0.7 amps max
Full-Sized LED Light Bars
- Low-profile, single-level design reduces wind resistance and improves fuel efficiency
- Customize with LEDs, Hyper-Brite LEDs, Chameleon LEDs, alley & take-down lights
- Optional Signal Stick or Chameleon Signal Stick provides additional warning capacity
- LED and Hyper-Brite LED panels are available in amber, blue, green, red and white
- Chameleon LED panels feature two LED colors interwoven in each panel
- 8-Output LED Flasher with selectable patterns & head mapping
- All modules are field-replaceable with standard tools
- Heavy-duty extruded aluminium base
- Clear Lexan housing and black ABS plastic cover are UV-protected
- Light Bar: 2 3/4"H x 48 5/8"W x 12 1/4"D (4 1/4" overall height including mounting feet) Controller: 1 5/16"H x 6"V x 5 11/16"D (for models with Signal Sticks or Chameleon Signal Sticks) // 12V / 25 amps max

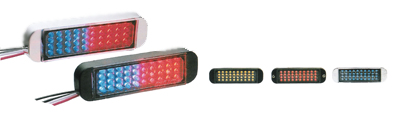

Micro-Lite LED Lights
- Waterproof lights mount on dash, deck, grille, trunk and mirror
- 40 high-intensity LEDs
- Solid or bi-color arrays of amber, blue, green, red or white LEDs
- Black ABS plastic or chrome housings
- Clear lens cover
- Knock-out holes for flush- or bail-mounting applications
- Available individually or in two- or four-head kits
- 1 1/2"H x 5 1/8"W x 11/16"D / 3.2oz
- 12V / 0.5 amps max, each light
|
Dash-Mount Siren
Full-Feature Plus Siren
- 100 Watts
- Horn Ring Compatible
- Illuminated Faceplate
- 2 1/4"H x 6"W x 6 1/2"D
12 Operational Modes
- Phaser
- Tap
- Wail
- Yelp
- High-Low
- Warble
- Whoop
- PA
- Standby
- Radio Rebroadcast
- Air Horn
- Intersection Mode
|
Four Function Switch Boxes
 |
- 2 1/4"D x 4 1/2"W x 3 7/8"D
- Standard with Backlit Legends
(4) Individually fused, 20-amp switches
- Super Duty with Backlit Legends
(1) Switch with 40-amp relay & 40-amp circuit breaker
(3) Individually fused, 20-amp switches
- Standard with Labels
(4) Individually fused, 20-amp switches
- Super Duty with Labels
(1) Switch with 40-amp relay & 40-amp circuit breaker
(3) Individually fused, 20-amp switches
|
|
Six Function Switch Box
 |
- 2 1/4"H x 6"W x 5"D
- Standard - (6) Individually fused, 20-amp switches
- Super Duty
(1) Switch with 40-amp relay & 40-amp circuit breaker. (5) Individually fused, 20-amp switches
|
|

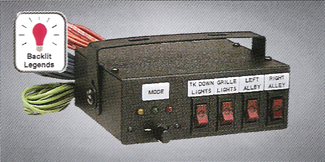

Seven Function Switch Box
 |
- Three-position slide switch with indicator lights safely controls primary and secondary functions while in pursuit.
- 2 1/4"H x 6"W x 5"D
- Standard Seven Function Switch Box
(1) Three-position slide switch. Each position has a 40-amp relay with a 30-amp (Type 2) automatic re-set circuit breaker. (4) Individually fused, 20-amp switches control auxiliary functions.
|
|

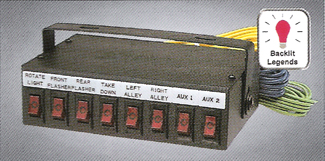

Eight Function Switch Box
 |
- 2 1/4"D x 7 3/8"W x 5"D
- Standard - (8) Individually fused, 20-amp switches
- Super Duty
(1)Switch with 40-amp relay & 40-amp circuit breaker. (7)Individually fused, 20-amp switches.
- Super Duty Plus
(2)Switches with 40-amp relays & 40-amp circuit breakers. (6)Individually fused, 20-amp switches
|
|

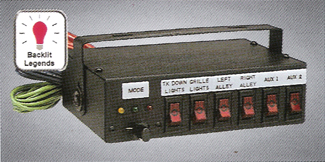

Nine Function Switch Box
 |
- Three-position slide switch with indicator lights safely controls primary and secondary functions while in pursuit.
- 2 1/4"H x 7 3/8"W x 5"D
- Standard Nine Function Switch Box
(1)Three-position slide switch. Each position has a 40-amp relay with a 30-amp (Type 2) automatic re-set circuit breaker. (6)Individually fused, 20-amp switches control auxiliary functions.
|
100 Watt Speakers |
Concealed Scoop Speaker
- Metal (pictured) or plastic scoop
- 4 1/2"D x 10 3/8"W x 4 1/4"D
Round Bell Speaker
- Black or polished aluminium bell
- 6"H x 6"W x 5 1/2"D
Standard-Profile Light Bar Speaker
- Black ABS plastic bell
- 5 1/4"H x 8"W x 6"D
|
Low-Profile Light Bar Speaker
- Black ABS plastic scoop
- 4 1/2"H x 6 3/4"W x 6"D
Slim Speaker
- Thin design installs in small spaces
- Three sound channels provide a clear tone with a long distance spread
- Cast aluminium housing
- 7 7/16"H x 7 3/4"W x 3"D
|
|
|
